AMS / AMSA Series

Drainer Mini Tough Pump

Overview

The AMS / AMSA series are compact, high−performance, durable submersible pumps, used to handle abrasive liquids, commonly used in challenging jobs such as industrial sites, mines, public utilities and construction sites.

Technical Specifications

Capacity: up to 168 m³/h

Head: up to 57 meters

Power: 0.25kW to 15kW

Power Supply: 0.25kW ~ 1.5kW Single phase 220V ± 10%, 50Hz; 1.5kW ~ 15kW Three phase 400V ± 10%, 50Hz

Insulation Class: F

Protection Class: IP68

Cable Length: 10m / 20m

Water temperature: up to 40°C

Max. water depth: AMS 0.25 ~ 0.75 kW: 10m; AMS 1.5-15kW: 25m

Application

Construction sites

Mining and industrial sites

Drainage and contaminated water

General pumping purposes

Sewage treatment plants

Optional Features

Other voltages

Other cable lengths

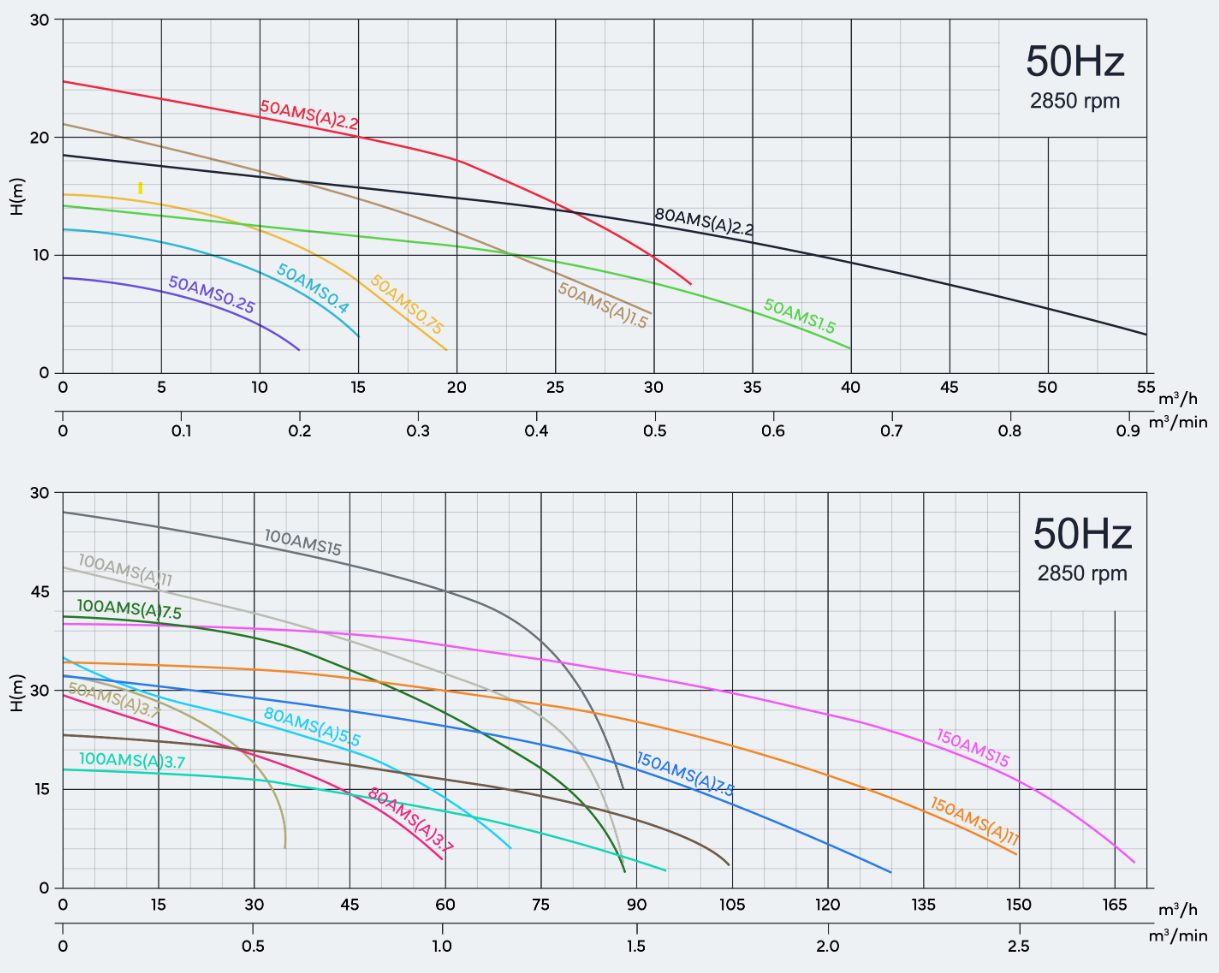

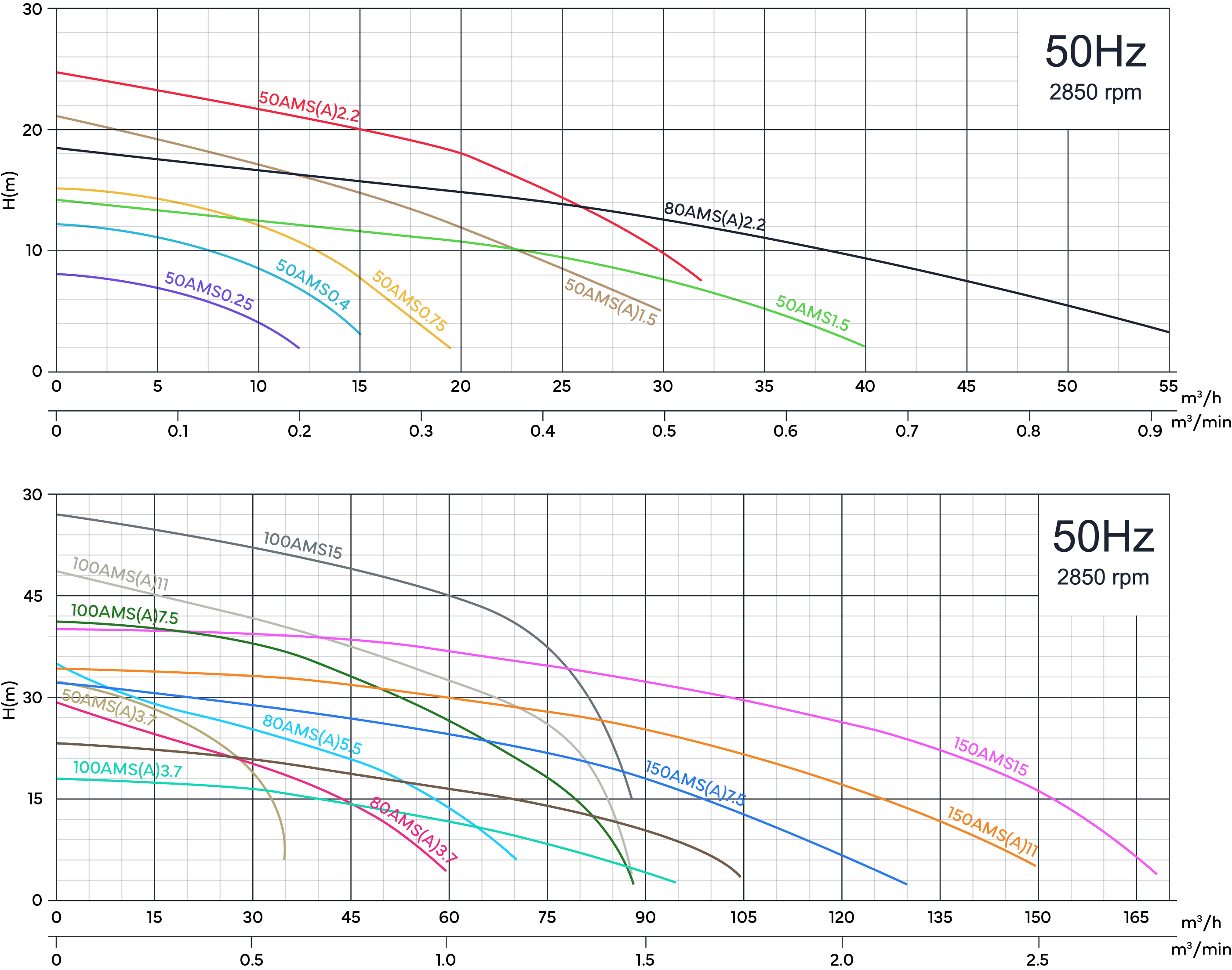

Performance

Performance Range

Motor(50hz)	Outletmm	Motor PowerkWHP		VoltageV	Related CurrentA	Max Capacitym3/hI/min		Max headm	Free passagemm
50AMS0.25	50	0.25	0.35	220	2	12	200	8	6
50AMS0.4	50	0.4	0.55	220	3.5	14.5	242	12	6
50AMS0.75	50	0.75	1	220	5	19.5	325	15	6
50AMS1.5	50	1.5	2	220	10	30	500	21	8.5
80AMS1.5	80	1.5	2	220	10	42	700	14	8.5
50AMS(A)1.5	50	1.5	2	400	3.5	30	500	21	8.5
80AMS(A)1.5	80	1.5	2	400	3.5	42	700	14	8.5
50AMS(A)2.2	50	2.2	3	400	5	32	533	25	8.5
80AMS(A)2.2	80	2.2	3	400	5	55	917	18.5	8.5
50AMS(A)3.7	50	3.7	5	400	7.7	36	600	32	8.5
80AMS(A)3.7	80	3.7	5	400	7.7	60	1000	29	8.5
100AMS(A)3.7	100	3.7	5	400	7.7	95	1584	18	8.5
80AMS(A)5.5	80	5.5	7.5	400	11.4	72	1200	35	8.5
100AMS(A)5.5	100	5.5	7.5	400	11.4	105	1750	23	8.5
100AMS(A)7.5	100	7.5	10	400	15	88	1467	41	11.5
150AMS(A)7.5	150	7.5	10	400	15	130	2167	32	19.5
100AMS(A)11	100	11	15	400	22	86.4	1440	48.5	11.5
150AMS(A)11	150	11	15	400	22	150	2501	34	19.5
100AMS15	100	15	20	400	29.5	86.4	1440	57	11.5
150AMS15	150	15	20	400	29.5	168	2801	40	19.5
