BCN Series

22-45 kW High Head Dewatering Pump

Overview

The BCN series submersible pumps are built with a strong cast iron construction to withstand high pressure in deep well dewatering applications.

Technical Specifications

  • Capacity: up to 372 m³/h
  • Head: up to 90 meters
  • Power: 22kW to 45kW
  • Power Supply: Three phase 400V ± 10%, 50Hz
  • Insulation Class: F
  • Protection Class: IP68
  • Cable Length: 20m
  • Water temperature: up to 40⁰ C
  • Max. water depth: 30m

    • Application

  • Mining and industrial sites
  • Construction sites
  • Deep-well and high-head dewatering
  • Drainage and contaminated water
  • General pumping purposes

    • Optional Features

  • Other voltages
  • Other length of cable
    • Performance

    Performance Range

    Motor(50hz) Outletmm Motor PowerkWHP VoltageV Related CurrentA Max Capacitym3/hI/min Max headm Free passagemm
    100BCN22 100 22 30 400 41.5 130 2167 68 6
    100BCN30 100 30 40 400 54 170 2834 78 6
    150BCN22 150 22 30 400 41.5 200 3334 50 15
    150BCN30 150 30 40 400 54 220 3667 58 15
    150BCN37 150 37 50 400 66 220 3667 83 6
    150BCN45 150 45 60 400 80 220 3667 90 6
    200BCN37 200 37 50 400 66 330 5501 48 20
    200BCN45 200 45 60 400 80 372 6201 53 20

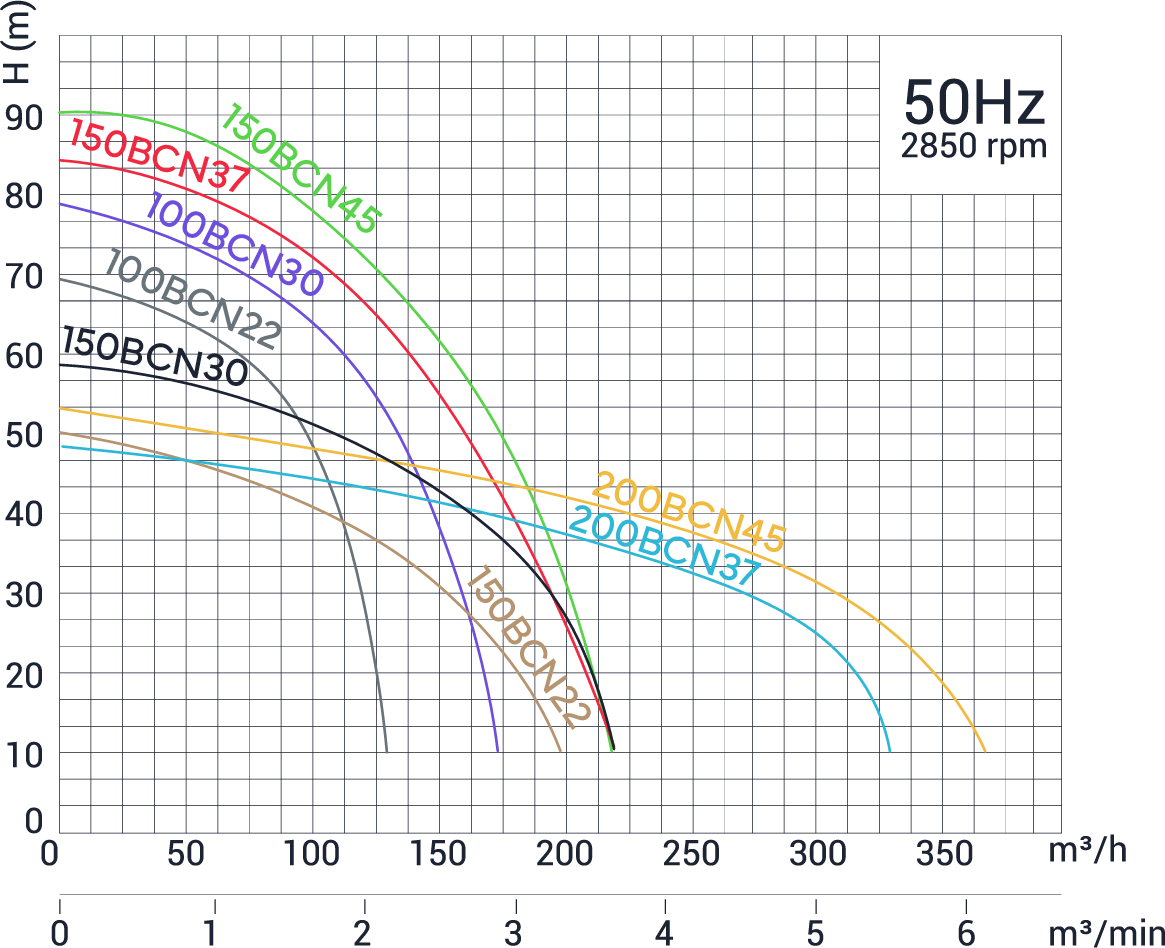

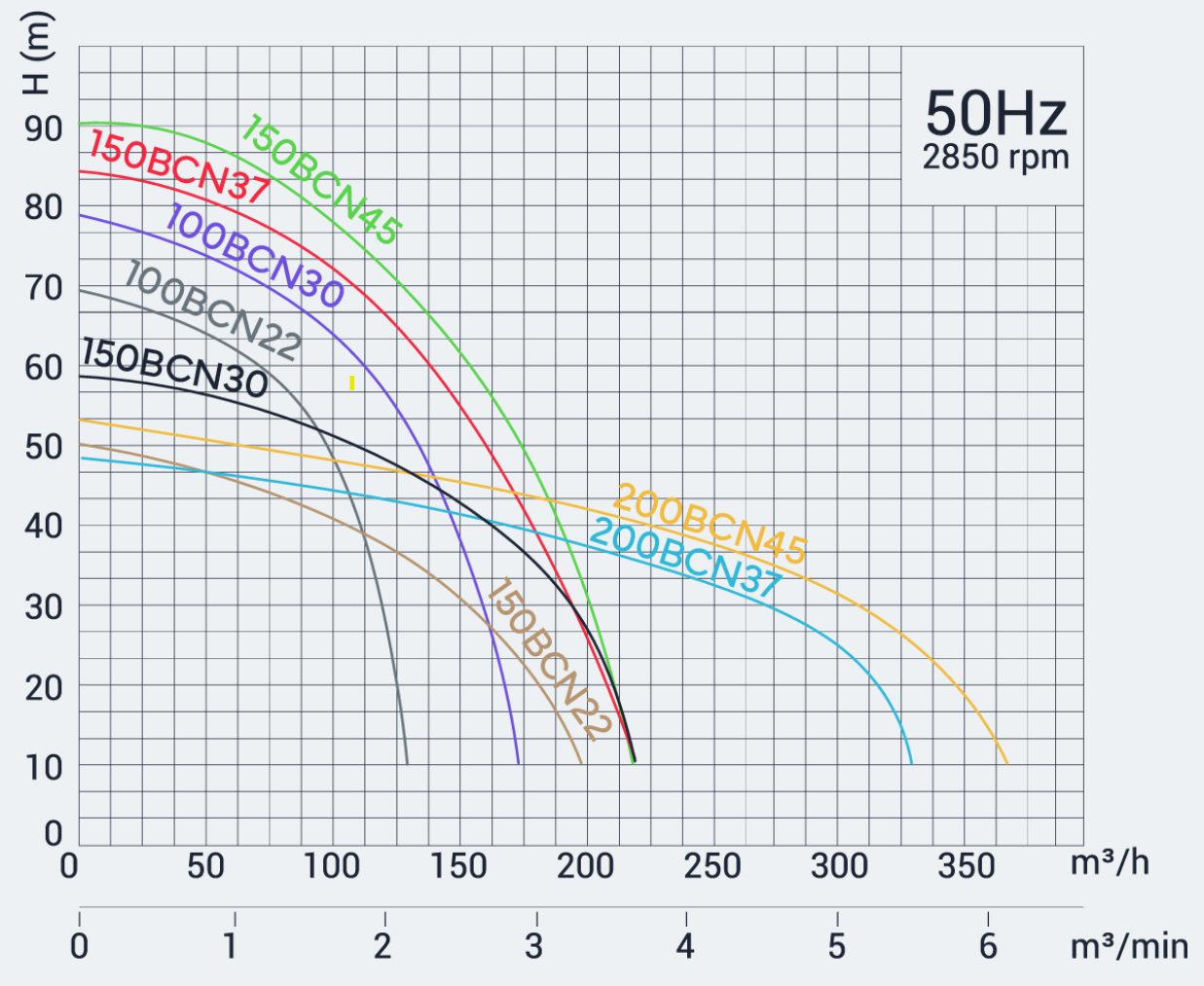

    Performance Curves
