BER Series

Slurry Mini Pump

Overview

The BER series portable drainage pumps are equipped with semi-vortex impellers and high chrome alloy agitators.

Technical Specifications

  • Capacity: 13m³/h
  • Head: 13m
  • Power: 0.55kW
  • Power Supply: Single phase 220V ±10%, 50 Hz Three phase 380V ±10%, 50 Hz
  • Insulation Class: F
  • Protection Class: IP68
  • Cable Length: 10m
  • Water temperature: up to 40°C
  • Max. water depth: 10m

    • Application

  • Construction sites
  • Mining and industrial sites
  • Drainage and contaminated water
  • General pumping purposes

    • Optional Features

  • Other voltages
  • Other length of cable
    • Performance

    Performance Range

    Motor(50hz) Outletmm Motor PowerkWHP VoltageV Related CurrentA Max Capacitym3/hI/min Max headm Free passagemm
    50BER0.55 50 0.55 0.75 110 / 400 4.0 / 1.7 13.2 220 13 9

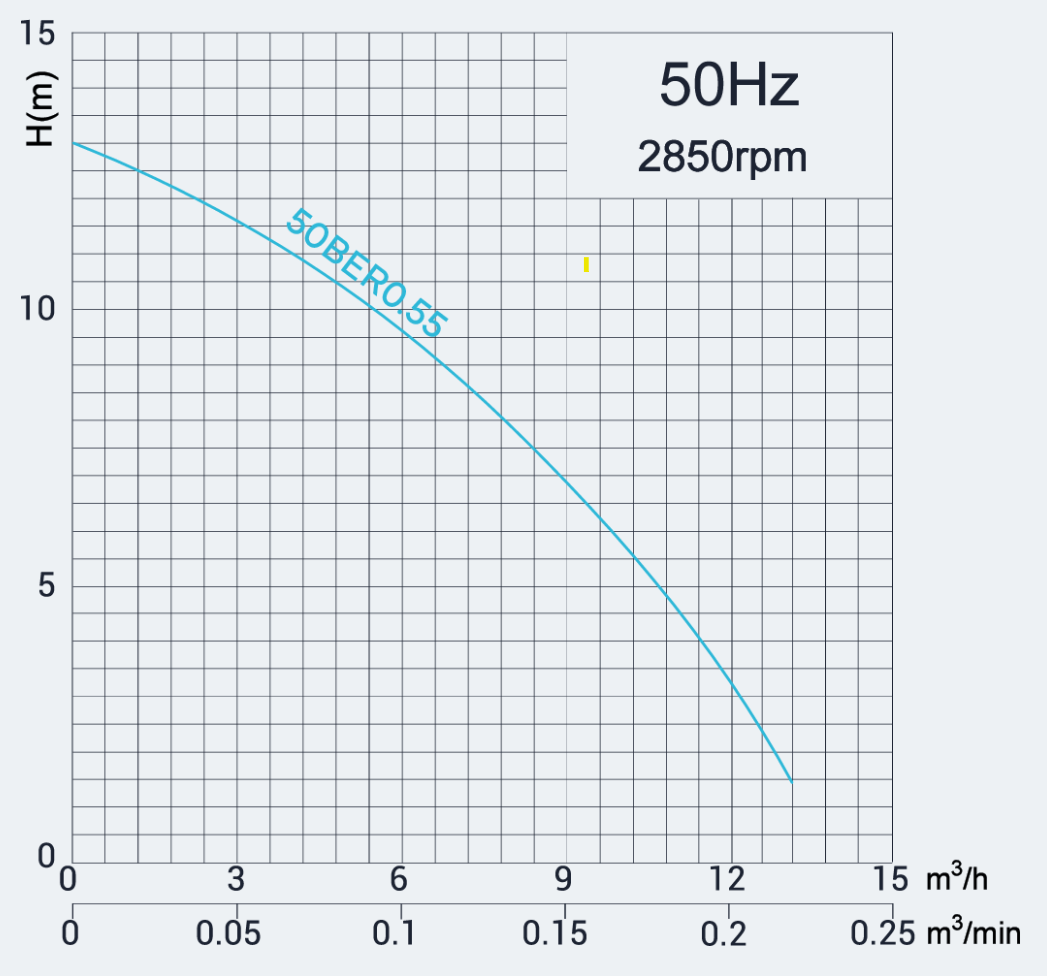

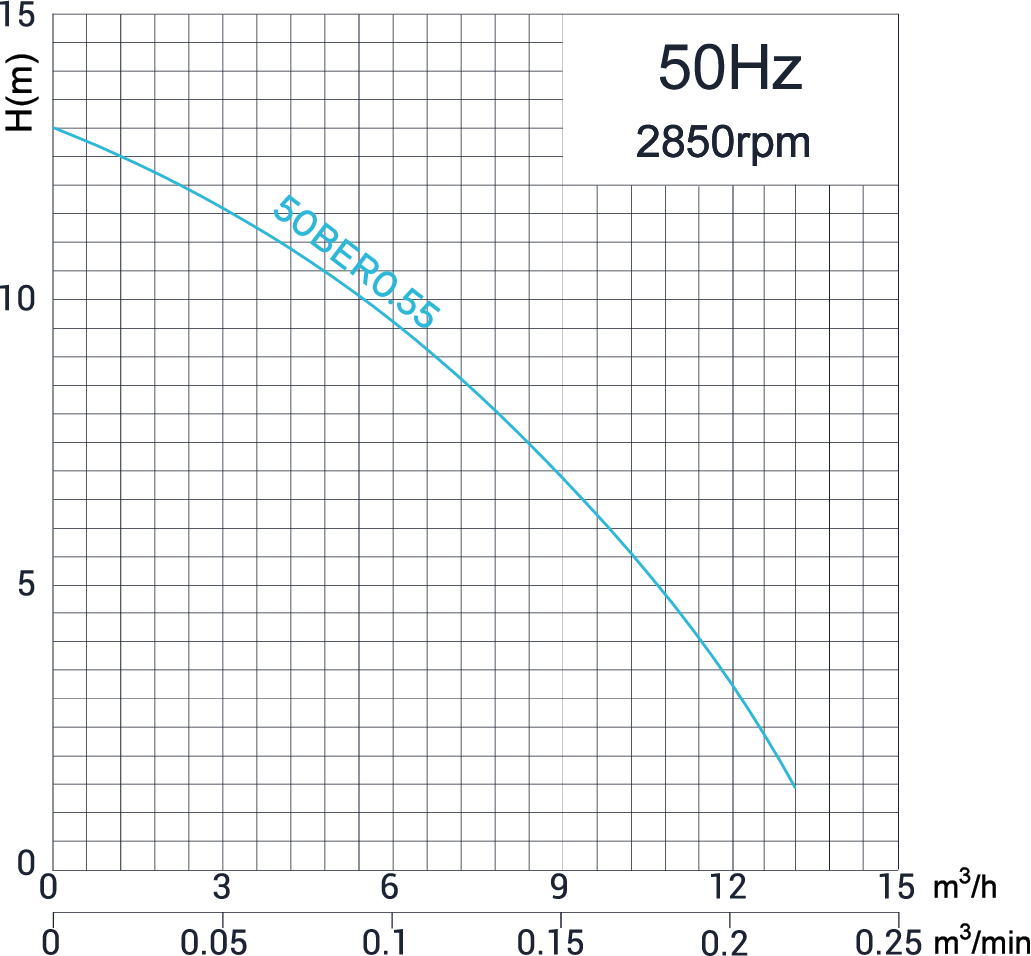

    Performance Curves
