LAX Series

Drainer Mini Pump

Overview

LAX series portable drainage pumps are equipped with semi−vortex impellers and built−in agitators.

Technical Specifications

  • Capacity: up to 18m³/h
  • Head: up to 18m
  • Power: 0.4kW to 0.75kW
  • Power Supply: Single phase 220V / Three phase 400V ± 10%, 50Hz
  • Insulation Class: F
  • Protection Class: IP68
  • Cable Length: 10m
  • Water temperature: up to 40⁰ C
  • Max. water depth: 10m

    • Application

  • Construction sites
  • Mining and industrial sites
  • Drainage and contaminated water
  • General pumping purposes

    • Optional Features

  • Other voltages
  • Other length of cable
    • Performance

    Performance Range

    Motor(50hz) Outletmm Motor PowerkWHP VoltageV Related CurrentA Max Capacitym3/hI/min Max headm Free passagemm
    50LAX0.4 50 0.4 0.55 110 / 400 3 / 1.3 12.6 210 12 6
    50LAX0.75 50 0.75 1 110 / 400 5 / 2 16 267 18 6
    80LAX0.75 80 0.75 1 110 / 400 5 / 2 18 300 17 6

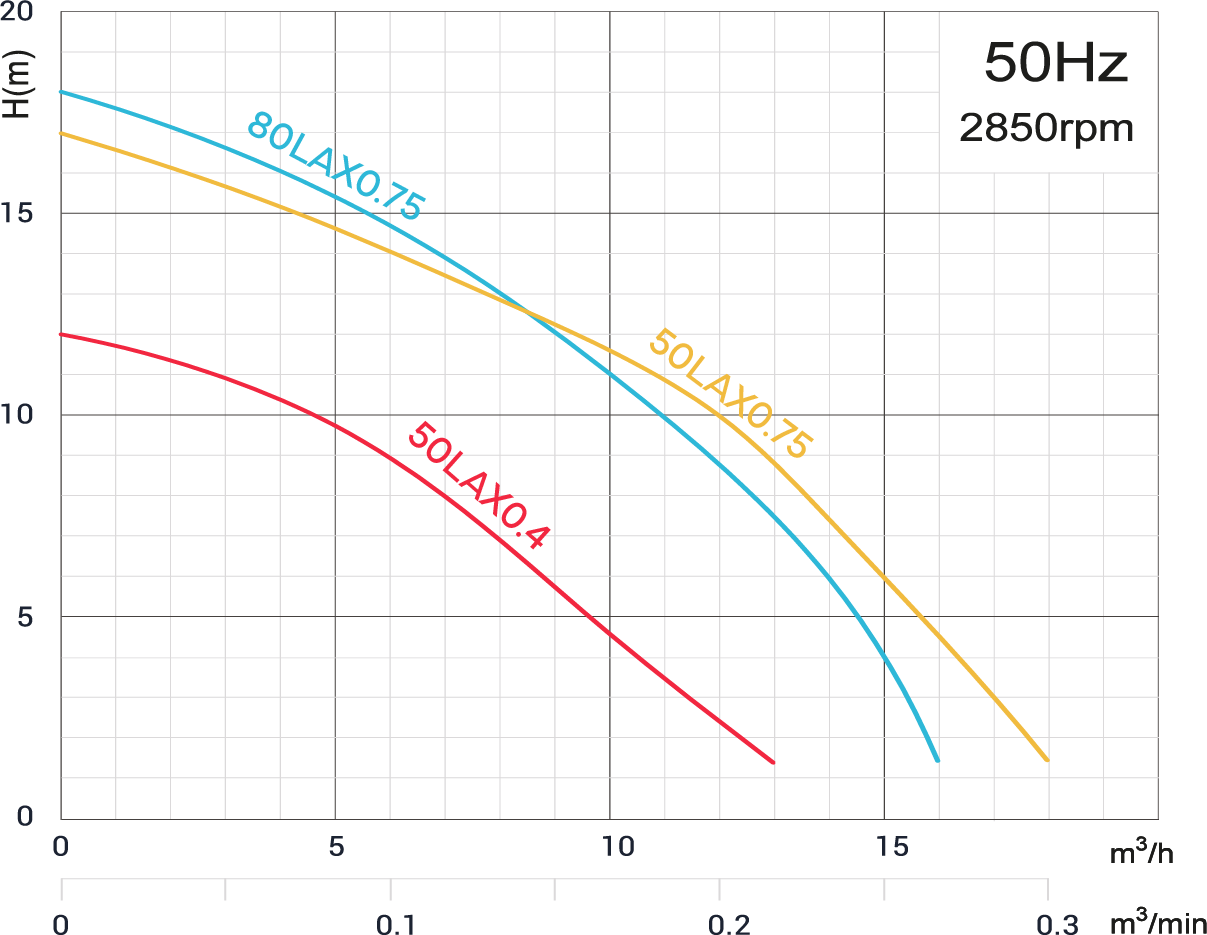

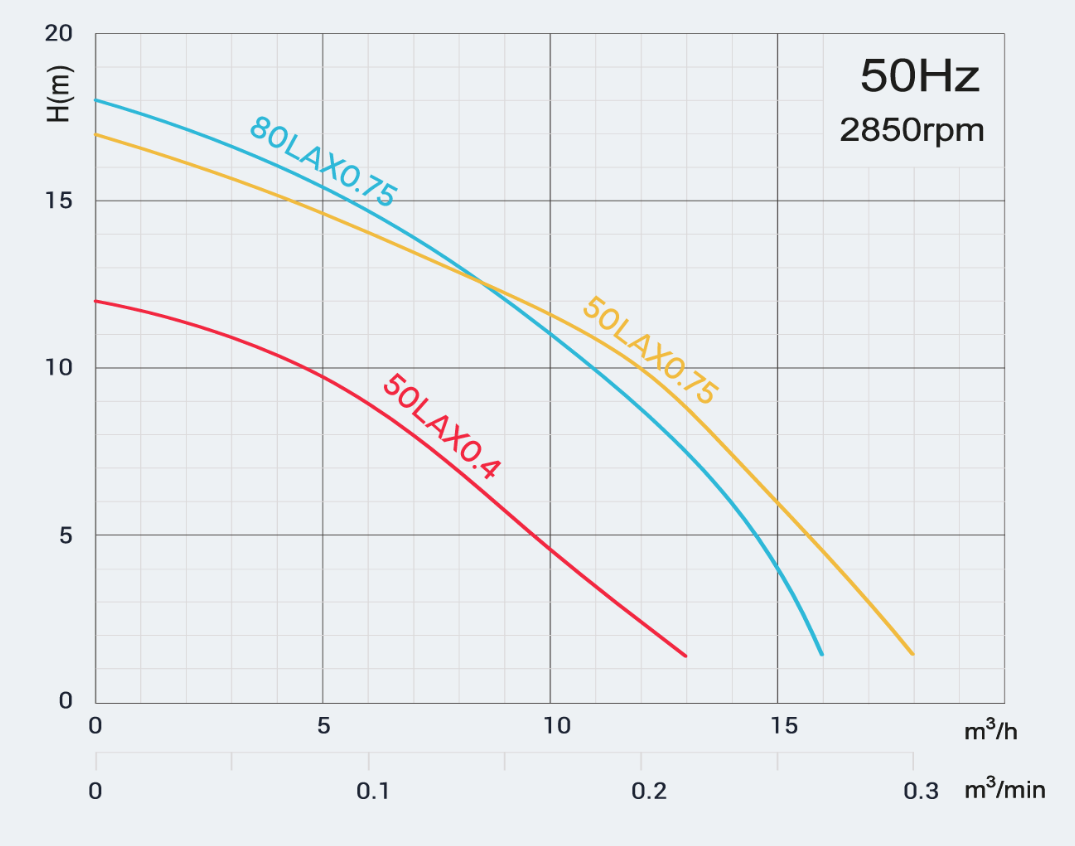

    Performance Curves
