LND Series

Submersible Agitator Slurry Pump

Overview

The LND-series sand & slurry pumps with 4-pole motors, are heavy-duty pumps designed for reliable operation in rough conditions.

Technical Specifications

  • Capacity: up to 390 m³/h
  • Head: up to 42 meters
  • Power: 4kW to 37kW
  • Power Supply: Three phase 400V ± 10%, 50 Hz
  • Insulation Class: F
  • Protection Class: IP68
  • Cable Length: 20m
  • Water temperature: up to 40⁰ C
  • Max. water depth: 15m

    • Application

  • Mines and quarries
  • Construction sites
  • Wastewater treatment plants
  • Transfer of water high in slurry, sand and abrasive particles
  • Cleaning of sand pits, sludge tanks and tailings’ ponds

    • Optional Features

  • Other voltages
  • Other length of cable
    • Performance

    Performance Range

    Motor(50hz) Outletmm Motor PowerkWHP VoltageV Related CurrentA Max Capacitym3/hI/min Max headm Free passagemm
    80LND4 80 4 5.5 400 10.2 99 1650 14.8 30
    100LND6 100 6 8 400 13.8 144 2400 16.9 30
    150LND9 150 9 12 400 19.5 192 3201 21.5 30
    150LND11 150 11 15 400 22 234 3901 22 30
    200LND15 200 15 20 400 30.1 372 6201 22 30
    200LND22 200 22 30 400 42 360 6001 32 30
    200LND30 200 30 40 400 57.6 390 6501 37 30
    200LND37 200 37 50 400 69.8 390 6501 42 30

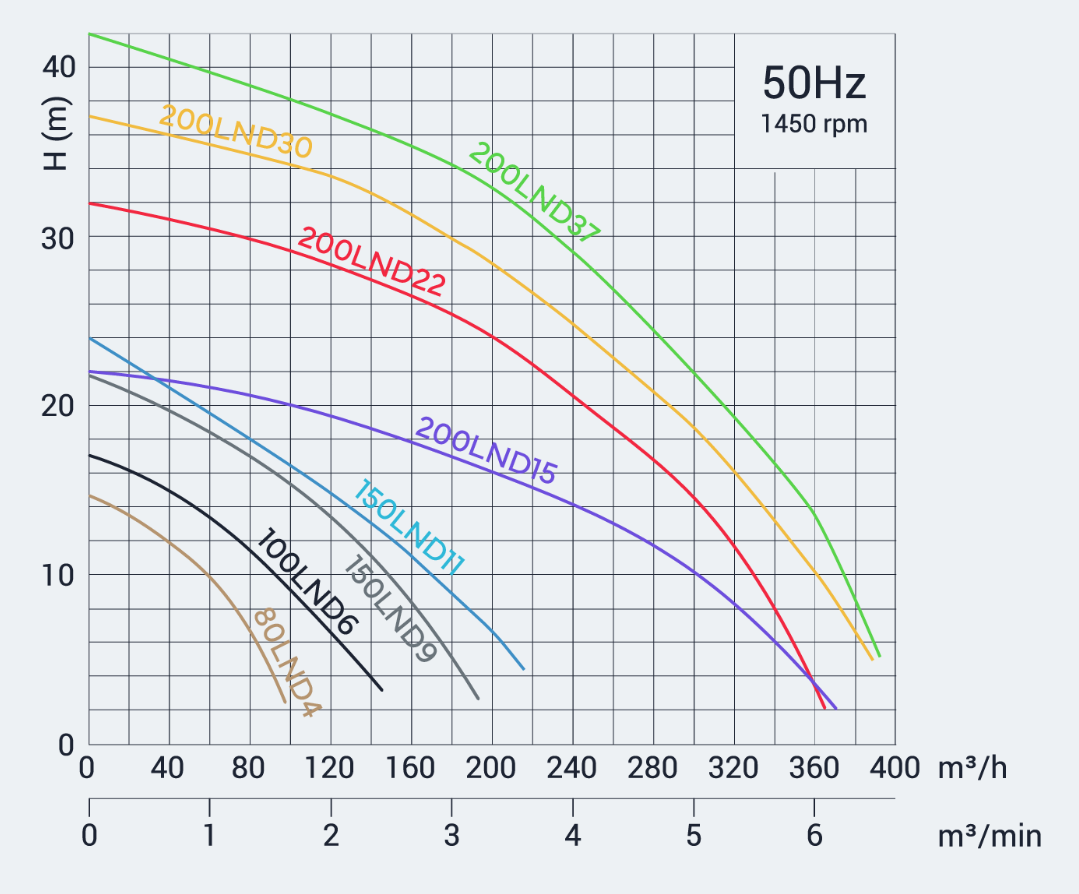

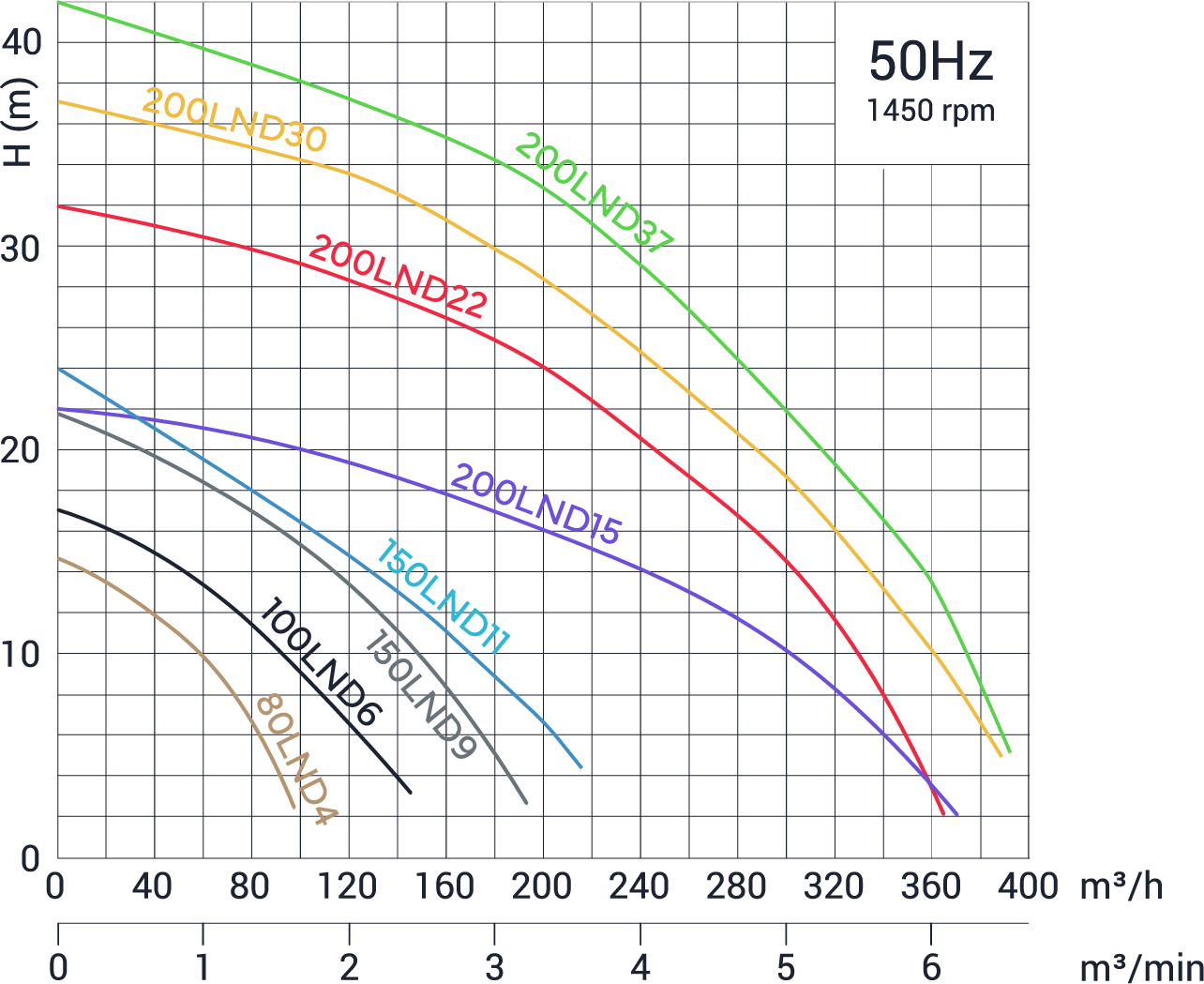

    Performance Curves
