MAD Series

55-110 kW High Head Dewatering Pump

Overview

The MAD series submersible pumps are built with a strong cast iron construction to withstand high pressure in deep well dewatering applications.

Technical Specifications

  • Capacity: up to 408m³/h
  • Head: up to 200m
  • Power: 55kW to 110kW
  • Power Supply: Three Phase 400V ± 10%, 50Hz
  • Insulation Class: F
  • Protection Class: IP68
  • Cable Length: 20m
  • Water temperature: up to 40⁰ C
  • Max. water depth: 30m

    • Application

  • Mining and industrial sites
  • Construction sites
  • Deep-well and high-head dewatering
  • Drainage and contaminated water
  • General pumping purposes

    • Optional Features

  • Other voltages
  • Other length of cable
    • Performance

    Performance Range

    Motor(50hz) Outletmm Motor PowerkWHP VoltageV Related CurrentA Max Capacitym3/hI/min Max headm Free passagemm
    150MAD55 150 55 75 400 100 180 3000 102 8
    150MAD75 150 75 100 400 134 180 3000 132 8
    200MAD55 200 55 75 400 100 390 6500 65 20
    200MAD75 200 75 100 400 134 408 6800 70 20
    150MAD90 150 90 120 400 162 180 3000 140 10
    200MAD90 200 90 120 400 162 360 6000 90 20
    150MAD110 150 110 150 400 198 192 3200 200 8
    200MAD110 200 110 150 400 198 390 6500 107 20

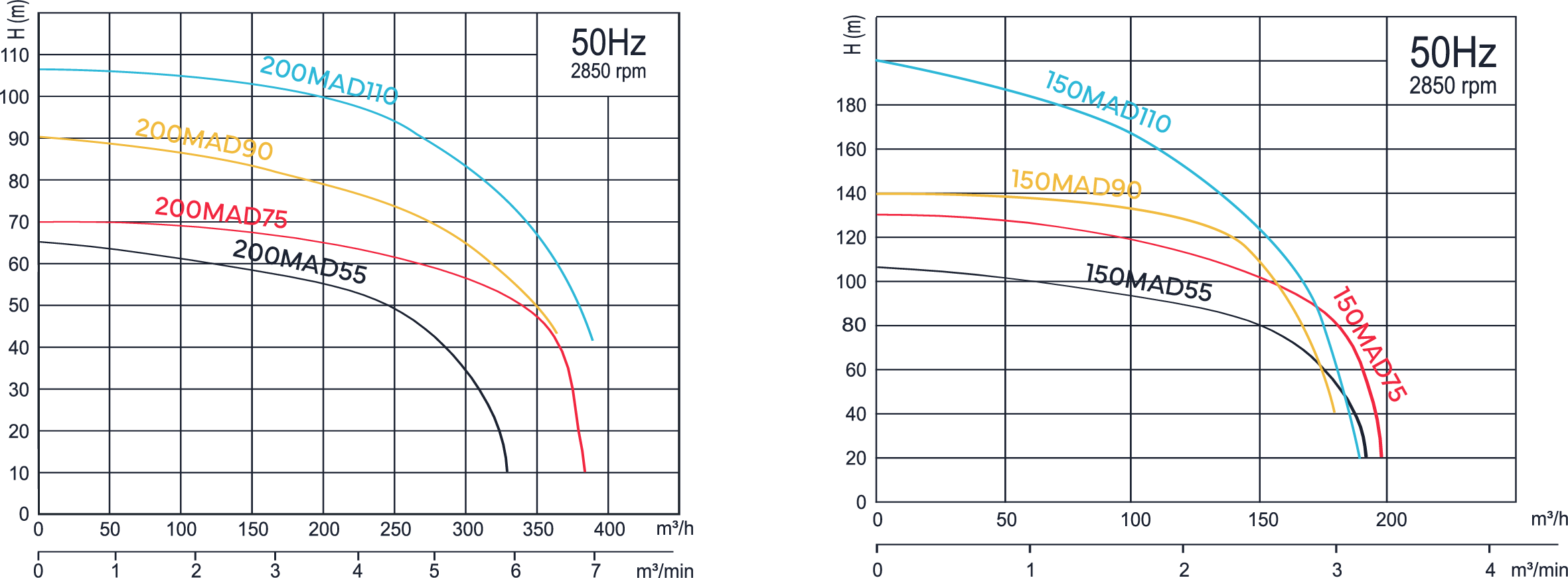

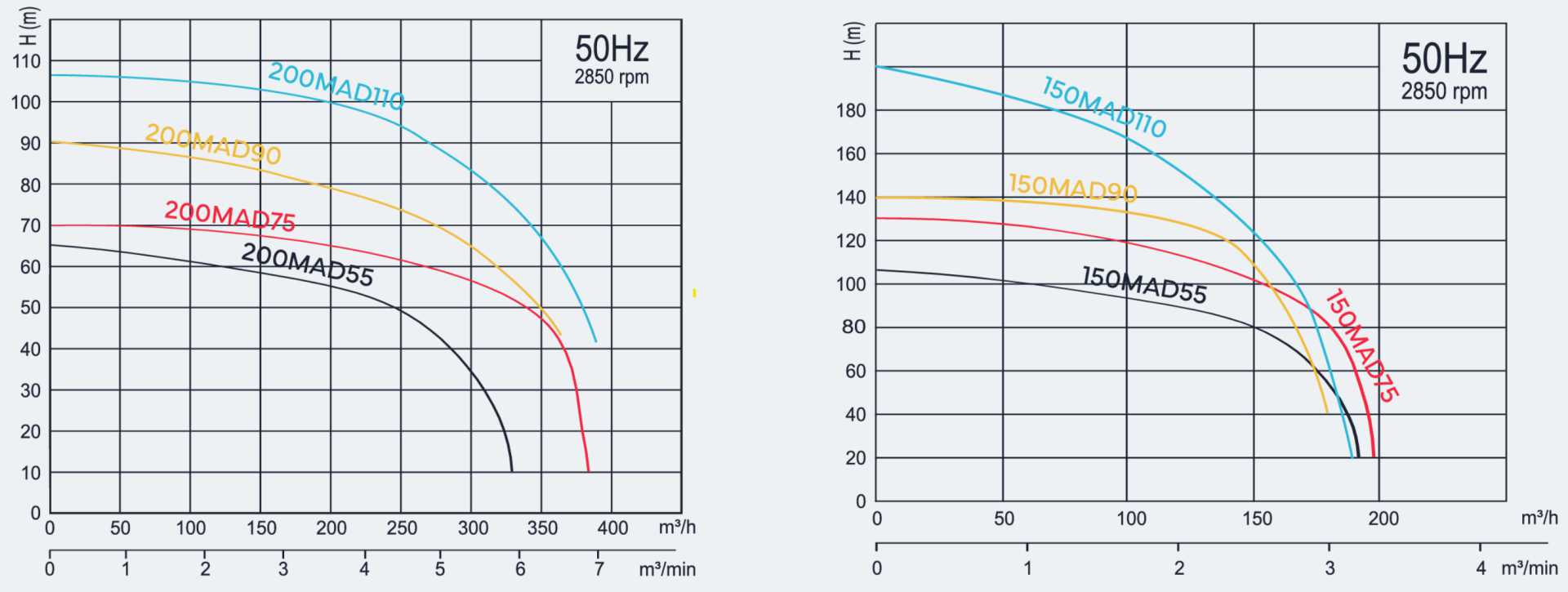

    Performance Curves
