MEXA Series

Automatic Agitator Pump

Overview

The MEXA agitator series consists of heavy-duty slurry/sand pumps with cast iron construction. These pumps, based on the NYC pump design, are equipped with agitators to facilitate smooth suction of the pumped media.

Technical Specifications

  • Capacity: up to 100 m³/h
  • Head: up to 32 meters
  • Power: 1.5kW to 5.5kW
  • Power Supply: Three phase 400V ± 10%, 50Hz
  • Insulation Class: F
  • Protection Class: IP68
  • Cable Length: 20m
  • Water temperature: up to 40⁰ C
  • Max. water depth: 25m

    • Application

  • Construction sites
  • Mines and quarries
  • Sand pits and sedimentation tanks at wastewater treatment plants
  • Transfer of bentonite slurry and sandy sludge
  • Transfer of water containing mud and sand

    • Optional Features

  • Other voltages
  • Other length of cable
    • Performance

    Performance Range

    Motor(50hz) Outletmm Motor PowerkWHP VoltageV Related CurrentA Max Capacitym3/hI/min Max headm Free passagemm
    50MEXA1.5 50 1.5 2 400 3.5 30 500 20 10
    80MEXA1.5 80 1.5 2 400 3.5 42 700 14.5 10
    50MEXA2.2 50 2.2 3 400 5 30 500 25 10
    80MEXA2.2 80 2.2 3 400 5 52 867 17 10
    80MEXA3.7 80 3.7 5 400 7.7 60 1000 30 10
    100MEXA3.7 100 3.7 5 400 7.7 90 1500 18 10
    80MEXA5.5 80 5.5 7.5 400 11.4 74 1234 32 10
    100MEXA5.5 100 5.5 7.5 400 11.4 100 1667 22 10

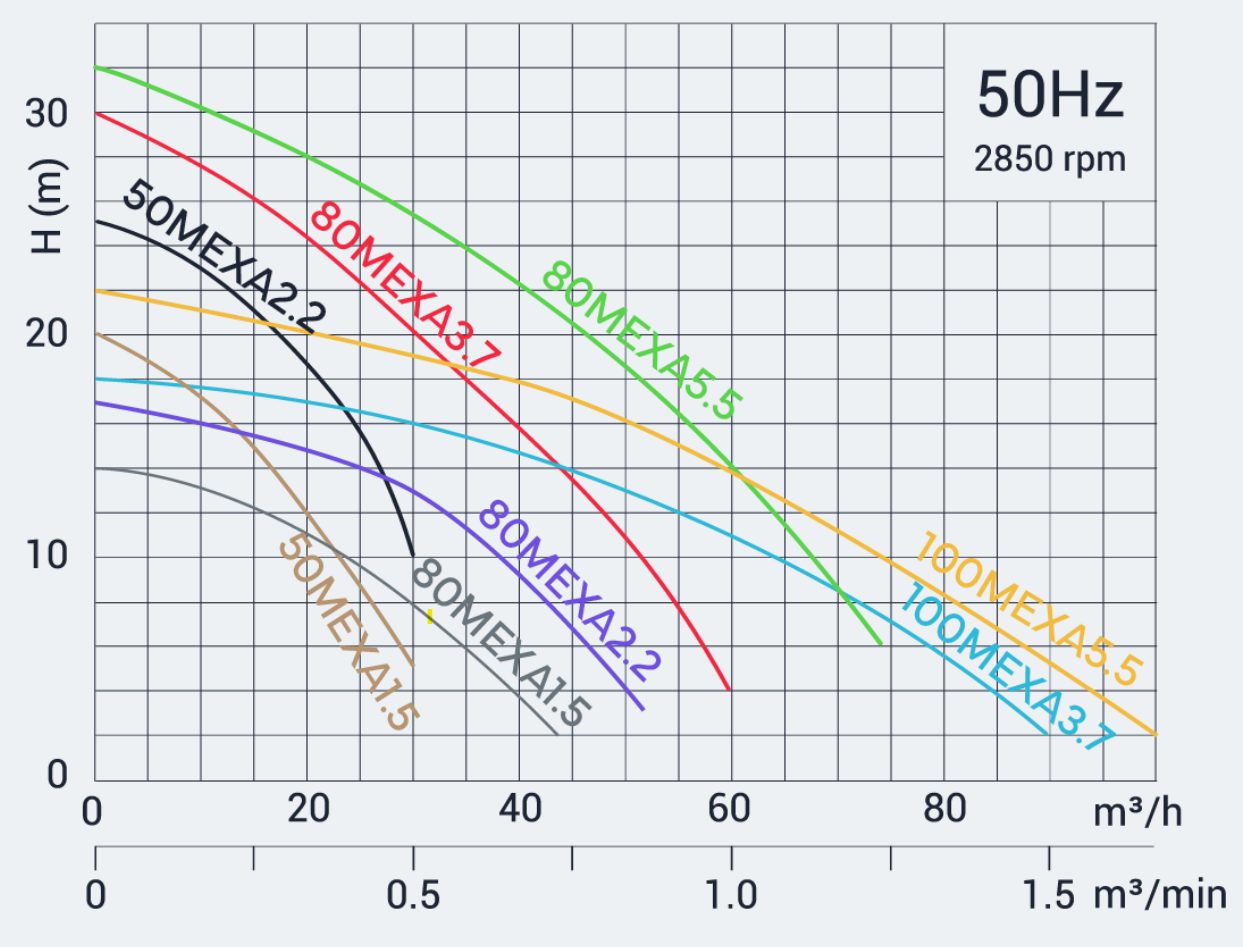

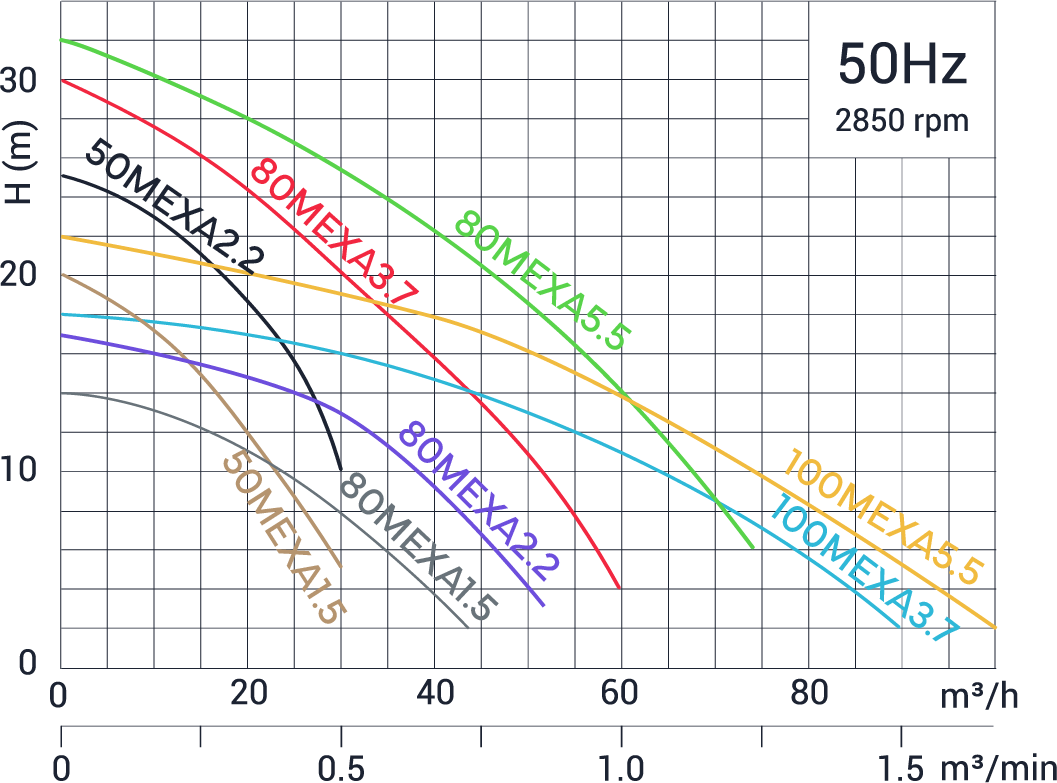

    Performance Curves
