NYCA Series

Automatic Submersible Dewatering Pump

Overview

The NYCA-series pumps are robust and versatile, suitable for draining in civil engineering and general pumping applications.

Technical Specifications

  • Capacity: up to 105 m³/h
  • Head: up to 34 meters
  • Power: 1.5kW to 5.5kW
  • Power Supply: Three phase 400V ± 10%, 50Hz
  • Insulation Class: F
  • Protection Class: IP68
  • Cable Length: 20m
  • Water temperature: up to 40⁰ C
  • Max. water depth: 25m

    • Application

  • Construction sites
  • Mining and industrial sites
  • Drainage and contaminated water
  • General pumping purposes

    • Optional Features

  • Other voltages
  • Other length of cable
    • Performance

    Performance Range

    Motor(50hz) Outletmm Motor PowerkWHP VoltageV Related CurrentA Max Capacitym3/hI/min Max headm Free passagemm
    50NYCA1.5 50 1.5 2 400 3.5 27 450 22 8.5
    80NYCA1.5 80 1.5 2 400 3.5 40 667 14.5 8.5
    50NYCA2.2 50 2.2 3 400 5 33 550 26 8.5
    80NYCA2.2 80 2.2 3 400 5 55 917 19 8.5
    50NYCA3.7 50 3.7 5 400 7.7 33 550 34 8.5
    80NYCA3.7 80 3.7 5 400 7.7 55 917 29 8.5
    100NYCA3.7 100 3.7 5 400 7.7 90 1500 18.5 8.5
    80NYCA5.5 80 5.5 7.5 400 11.4 75 1250 34 8.5
    100NYCA5.5 100 5.5 7.5 400 11.4 105 1750 23 8.5

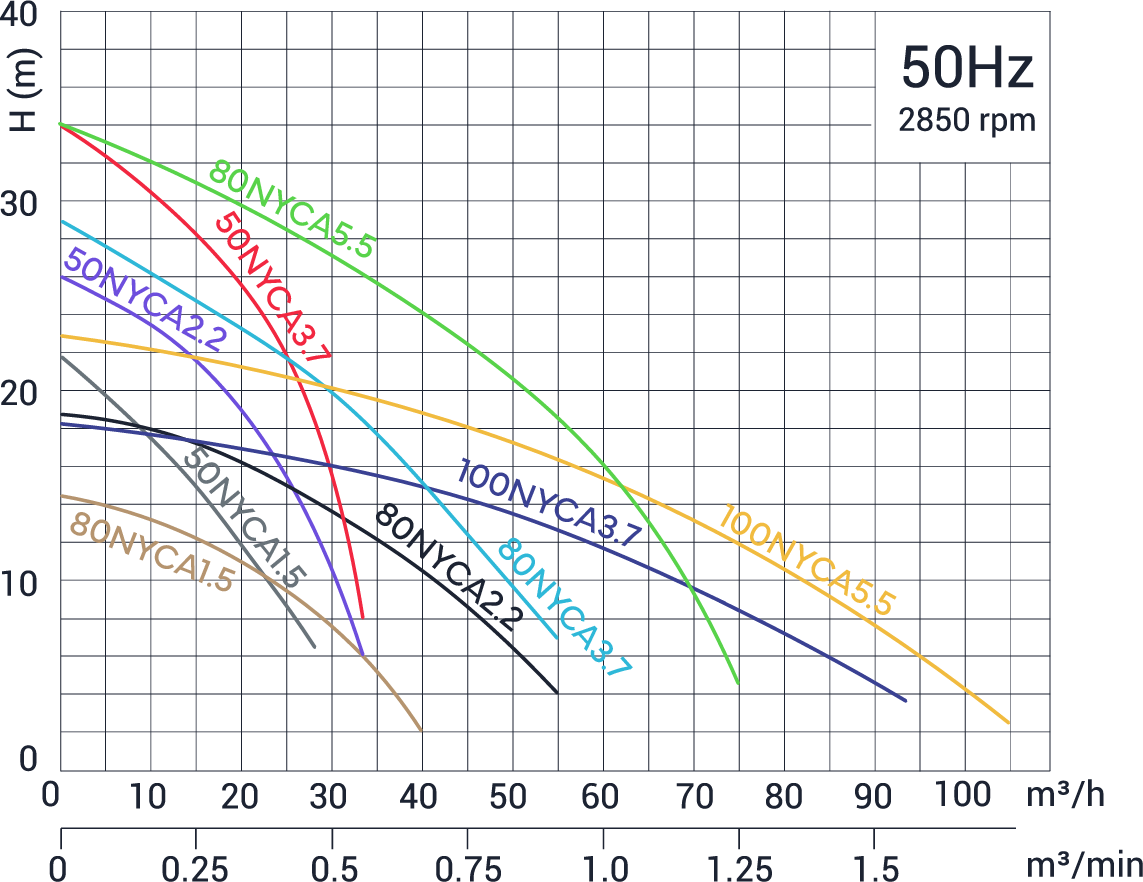

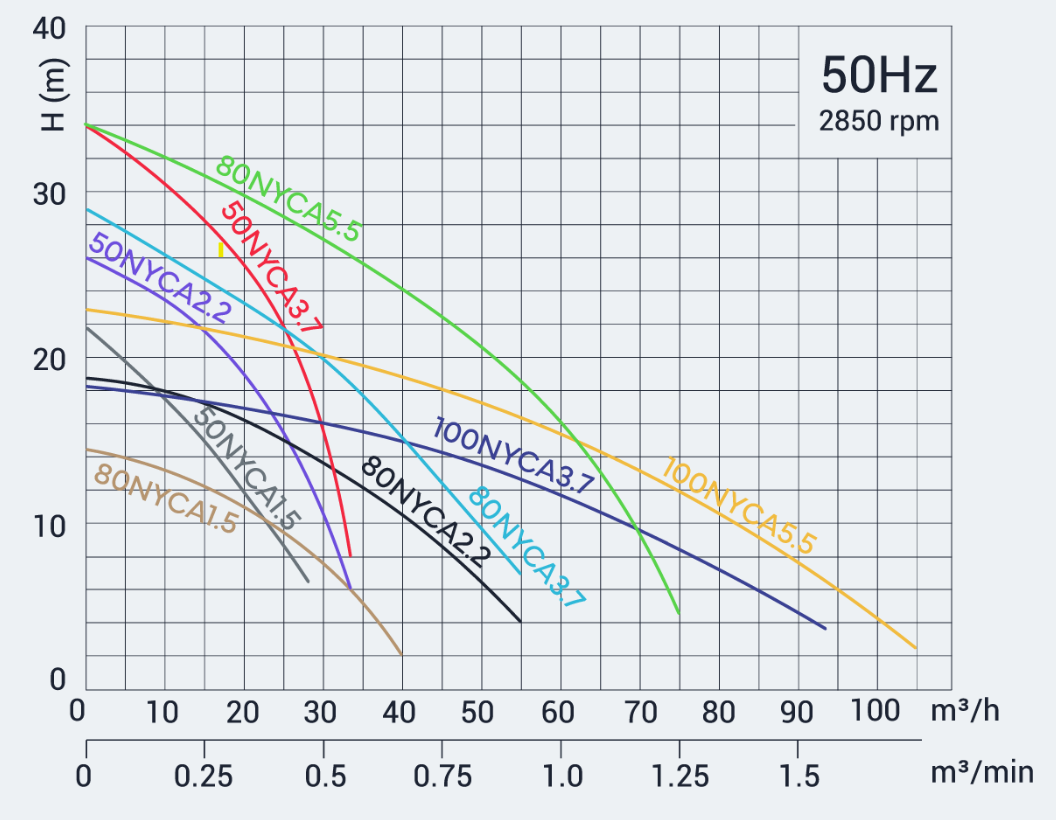

    Performance Curves
